With connection to central cooling or external cooling system, available in many different sizes.
| PSS-WW | Technical Data |
|---|---|
| Supply pumps | 1 |
| Max. flow rate per pump [l/min] | 100 |
| Electric connection | 400V - 3Ph - 50Hz 208V - 3Ph - 60Hz |
| PSS-WW-9 | Technical Data |
|---|---|
| Filling volume [l] | 9 |

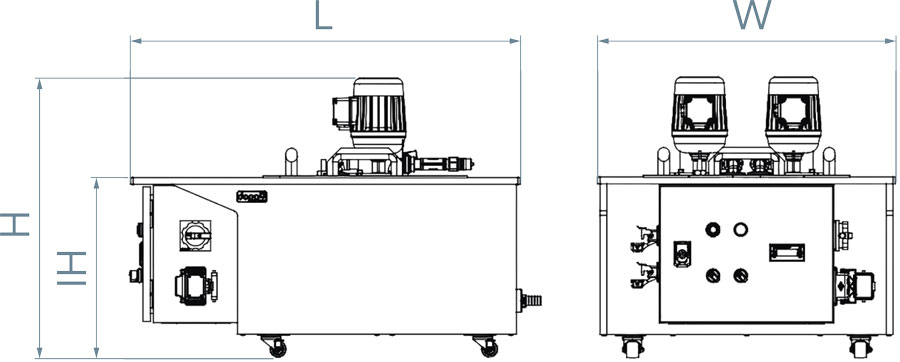

| Dimensions [L x W x H cm³] | 75 - 47 - 51 |
| Inlet height 1 - IH [cm] | 30 |
| PSS-WW-15 | Technical Data |
|---|---|
| Filling volume [l] | 15 |
| Dimensions [L x W x H cm³] | 86 - 52 - 61 |
| Inlet height 1 - IH [cm] | 39 |
| PSS-WW-25 | Technical Data |
|---|---|
| Filling volume [l] | 25 |
| Dimensions [L x W x H cm³] | 86 - 52 - 65 |
| Inlet height 1 - IH [cm] | 43 |
| PSS-WW-35 | Technical Data |
|---|---|
| Filling volume [l] | 35 |
| Dimensions [L x W x H cm³] | 86 - 57 - 69 |
| Inlet height 1 - IH [cm] | 47 |
